Products---inductive loop vehicle detector

Model:JTLD-102 inductive loop vehicle detector,Compatible TD134

Parking vehicle counter Features:

The LD-102 Enhanced vehicle loop detector installation is a single channel microprocessor based detector designed specifically for traffic control applications. The detector has been designed using the most up-to-date technology in order to meet the requirements of a vast number of traffic applications in terms of operating conditions and functional options available to the user.

Description
inductive loop vehicle detector in recent years have become a popular tool having innumerable applications in policing, right
from surveillance operations to traffic control. Automation of gates and doors has become a popular usage of the
loop detector.

Vehicle detector prices Specifications：
Supply Voltage
LD-100：85-240VAC (50Hz)
LD-102：12V~24VADC
Power Consumption
Max. 6VA
Loop Inductance
20-1500μH
Frequency Rang
20-100 kHz
Sensitivity
ΔL 0.01% to 2.56% with 16 Selectable Levels
Loop Lead
＜500m
Relay
Operating/no load current principle adjustable via switch
Signal Period, Impulse Time
＞250ms
Response Time
8~80 ms

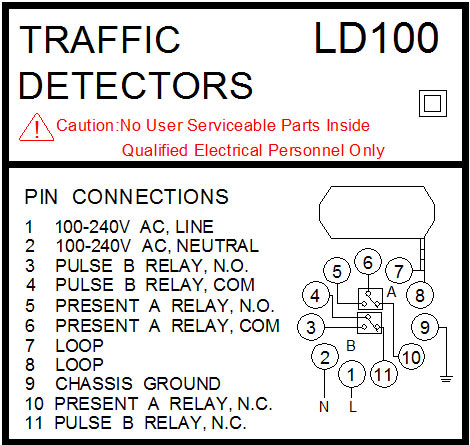

11-PIN CONNECTOR WIRING:
VEHICLE DETECTOR LABEL

The LD-102 Enhanced Vehicle Detector is also provided with an integral fault relay, which will provide an output in the event of a loop fault condition.
