Products---Double channel vehicle loop detector

Single channel traffic vehicle detectors(Click Here)

Dual Channel loop detector Modes of opteration:

Presence Mode

Pulse Mode

AB Logic Presence Mode(Barrier Operation)

AB Logic Pulse Mode(Vehicle Counting)

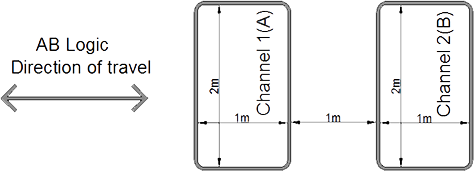

AB Logic Mode Loop wire:

Model:JTLD-200 vehicle loop detector,high speed traffic detector

Car parking vehicle sensor Features:

The LD-200 loop detector is an intelligent, extremely flexible and very affordable product.
The LD-200 is designed to accommodate numerous applications, can be adjusted intelligently to any environments and virtually eliminating false detection.
On the front panel, the four selectable loop frequencies (20~80 KHz) can completely eliminate any crosstalk.
If intermittence happen or failed loops get self-healed, the detector will resume to normal operation without manually reset the detector.
Self-tuning & complete environmental tracking.
Two-color LED status indicator for Detect, Power, and Loop Fault indication.

Specifications：
LD-200：85-240VAC (50Hz-60Hz)
Loop Inductance
20-2000μH
Sensitivity
ΔL 0.015% to 0.8% with 8 Selectable Levels
Response Time
8~80 ms
EURO 11-pin connect

Model:JTLD-202 vehicle detectors,high speed traffic detection

Traffic vehicle sensor Features:

The LD-202 loop detector is an intelligent, extremely flexible and very affordable product.
The LD-202 is Loop detectors in recent years have become a popular tool
having innumerable applications in policing, right from
surveillance operations to traffic control. Automation of gates and doors has become a popular usage of the
loop detector.
Self-tuning & complete environmental tracking.
Two-color LED status indicator for Detect, Power, and Loop Fault indication.

Specifications：
LD-202：12-24VADC
Loop Inductance
20-2000μH
Sensitivity
ΔL 0.015% to 0.8% with 8 Selectable Levels
Response Time
8~80 ms
EURO 11-pin connect

Model:JTLD-205 vehicle loop detector, traffic vehicle detection

traffic sensor Features:

The LD-205 loop detector is an intelligent, extremely flexible and very affordable product.
The LD-205 loop consists of several loops of wire and consideration should be giving to the loop sensitivity when installing on different surfaces. Setting the correct sensitivity allows the loop to operate with maximum detection (16 levels via a trimpot). When detection occurs, the detector energises 2 relays for the output (each can be configured individually). This energising of the relay can be configured into different modes, by selecting the respective dip switch.
Self-tuning & complete environmental tracking.
Two-color LED status indicator for Detect, Power, and Loop Fault indication.

Specifications：
LD-205：85-240VAC (50Hz-60Hz)
Loop Inductance
20-2000μH
Sensitivity
ΔL 0.015% to 0.8% with 8 Selectable Levels
Response Time
8~80 ms
USA 11-pin connect

Model:JTLD-206 vehicle detectors,high speed loop detectors

gate automation sensor Features:

The LD-206 loop detector is an intelligent, extremely flexible and very affordable product.
The LD-206 Enhanced Vehicle detector is also provided with an integral fault relay, which will provide an output in the event of a loop fault condition.
Self-tuning & complete environmental tracking.
Two-color LED status indicator for Detect, Power, and Loop Fault indication.

Specifications：
LD-206：12-24VADC
Loop Inductance
20-2000μH
Sensitivity
ΔL 0.015% to 0.8% with 8 Selectable Levels
Response Time
8~80 ms
USA 11-pin connect

Single channel traffic vehicle detectors

How to install the loop detector?
