System Description
Shenzhen JUTAI Hands Free One-stop whole building security system solution focuses on applications for person and vehicle identification and access control system. Our hands free ONE-Stop security solution, which main including RFID LONG RANGE parking system, hands free door access control system, hands free elevator management system, wireless alarm system, Rolling door control system ,etc. We use one card and JUTAI Parking access control software, only one platform and one card to make all of this function come true.
JUTAI Parking access control system platform with 64 different time zones, 26000 users application, 10,000 transaction record memory, and which also has integrate time attendance, meeting management ,guard tour system, those additional value function we are for free to our customers application, no need to others software module. It is strong and smart software platform with Strong competitiveness and easy to operation.

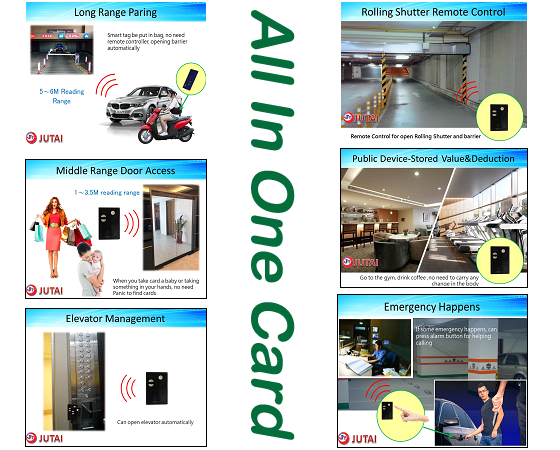

One Card Access Solution System include:
1.Long Range Parking Control Solution
2.MID Range Lift Management Control Solution
3.Alarm Control Solution
4.RFID Access Control Solution

Long Range&Mid Range&Short Range In One Card


How It Works:
When we arrived Parking Control,the long range system working,then we not need to open the windows,not need to flash the card,it is hands free.

When there a robbery,we can push the button "ask" for help,then the security person can help us.

When we arrived the lift,the mid range reader will transfer our tags ID to Lift management,the system will licensing us which floor we can go,which can't not.if we not have the tag,then we can't go to any floor.

When we back to home,we can use short reader/hands free to open the door.

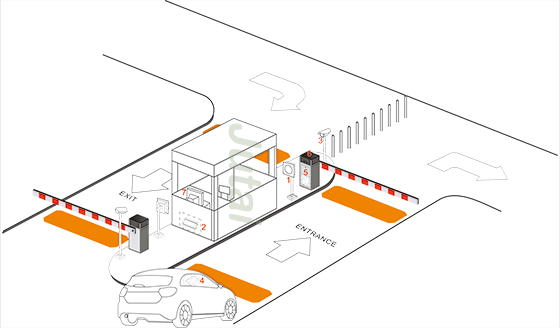

For Parking Control,it will use our Long Range Control System and Access Control System.and Intelligent RFID tags:

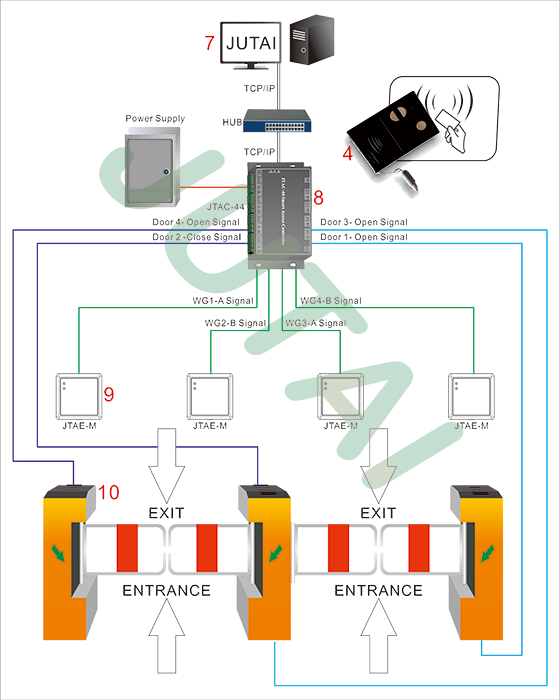

Flap Barrier for visitor management system control:

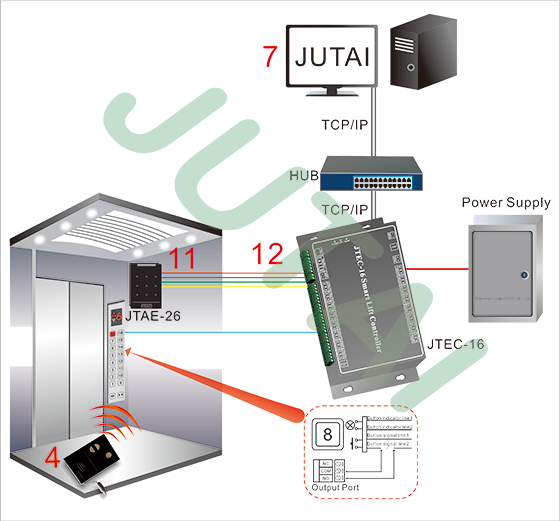

MID Range Control System and Lift Control System and the same Intelligent RFID Tags:

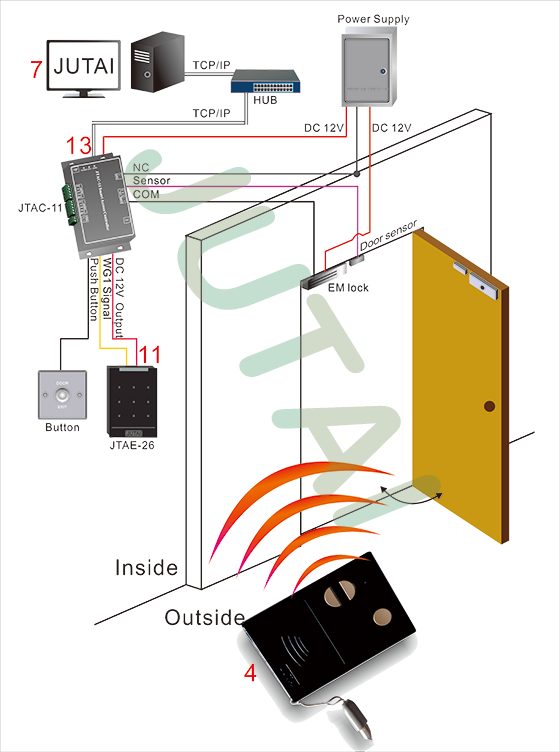

Back to home,the Access System and MID Range Control System/Short Range Control System and Intelligent RFID Tags:

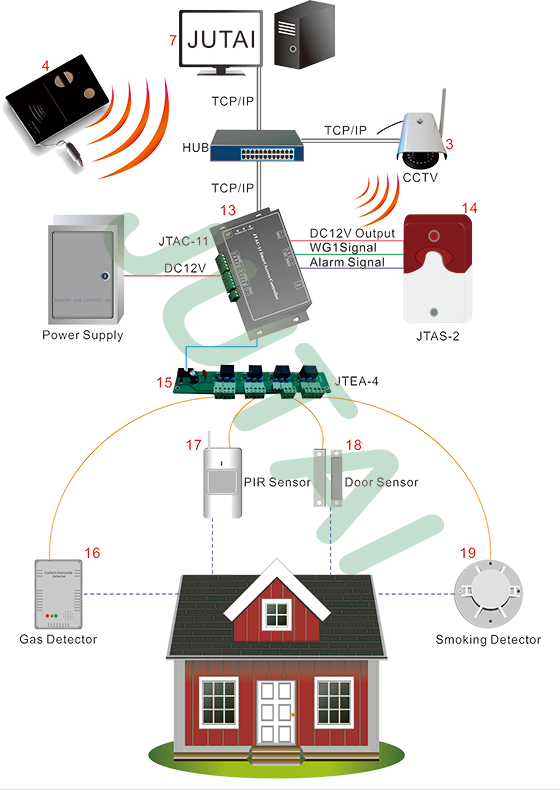

RFID Alarm system and Access System and the same Intelligent RFID Tags,if we need help:


The System Parts:

RFID Long Range Parking Reader JT PR-52 It is long range reader for parking control Read distance:1-5M adjust The card can't be copy.	Parking Access System JTAC-20T double doors guard house verify card number, expiry date and access permission. Upon approved identity, AC-20T will open barrier gate and trigger DVR to capture picture.
IP Video Camera JTIV-200 IP Video Camera,can connect to software direction,not need to add another DVR Video Server.Save money.and control easy.	2.45GHz RFID tags JT ID-62 Intelligent tags Can't be copy,easy to use,hands free system. CR2032 battery,1pcs work lift >2years Also can used for remote control.Light Control.
Vehicle detector JTLD-100 Enhanced loop detector will trigger barrier gate to close automatically after vehicle complete passed through,Self-tuning range:20-2000UH	Traffic barrier gate JTBG-630 1.2s,3s,6s be selected; Arm 3-6m; The clutch on pendulum axis, barrier boom upped quickly by hand underPower status, rest automatically when power off.
Access Software JT AC-26000 software display live picture captured and record event log of each entry and exit.	Access Control System JTAC-40T four doors guard house verify card number, expiry date and access permission. Upon approved identity, AC-40T will open barrier gate and trigger DVR to capture picture.
Door Button JT AE-M Electric switch, closing power is low, elastic will let the door automatically shut down, whatever have or haven’t power.	Get More Information: infor@jutairfid.com
