System Description
Shenzhen JUTAI Dual frequency hands free long range parking system solution, it is targeted for low budget car parking access control system solution. This solution has integrate the long range and short range, if customers want to use cheap card, they can select mifare/EM card(Reading range 5-7cm);if customers want to use middle range, they can select 2.45G card, reading range is (3-5 meters, inside of the vehicle, we use V-KOOL 40 testing.).One master reader has integrate the standards control broad with one exit/one entrance, no need additional convertor, by TCP/IP connect to computer directly. Easy and
Convenient for the users. If customers select 2.45G card, in rainy day no need to wind down windows, no need use your hands to take card, totally hands free solution.



System Highlight:

Dual frequency reader (2.45G middle range+EM/mifare), one but integrate two readers.

Flexible application; meet customers different requirement and offer more selection to dear customers;

Supporting JUTAI 2.4G smart tag and standards Mifare/EM card.

Master reader has integrate control broad inside, By TCP/IP connect to PC directly, no need additional convertor)

Wigand 26/34 interface, customers can select our whole solution or can easy to integrate different access control system.

Support local anti-Passback function between 2 reader units

26,000 users in max

100,000 records can be saved(cycle/lost)

64 different time zone groups can be setting according to customer different requirement.

CCTV system integration and image compare function which makes the community and property safe.

Integrate auto-gate wireless remote control and light control for residence villa, No need to prepare additional remote controller, use JUTAI solution, one card and one platform is enough.

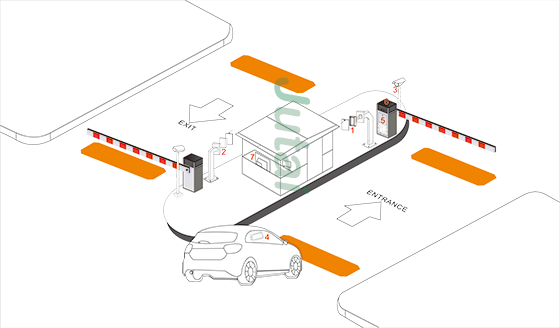

How is system work:

The System Parts:

Middle Range Parking Reader JT PR-32TM It is long range reader for parking control Read distance:1-5M adjust TCP/IP to central control.	Mid-Range Parking Reader JT PR-32S It is long range reader for parking control Read distance:1-5M adjust The card can't be copy.View more..
IP Video Camera JTIV-200 IP Video Camera,can connect to software direction,not need to add another DVR Video Server.Save money.and control easy.	2.45GHz RFID tags JT ID-2S Intelligent tags Can't be copy,easy to use,hands free system. CR2032 battery,1pcs work lift >1years Also can used for remote control.Light Control.
Loop detector JTLD-100 Enhanced loop detector will trigger barrier gate to close automatically after vehicle complete passed through,Self-tuning range:20-2000UH	Traffic barrier gate JTBG-630 1.2s,3s,6s be selected; Arm 3-6m; The clutch on pendulum axis, barrier boom upped quickly by hand underPower status, rest automatically when power off.
Access Software JT AC-26000 software display live picture captured and record event log of each entry and exit.
