Solution 1(CP1):1-5Meters 2.45GHz Long Range Vehicle Access Control .

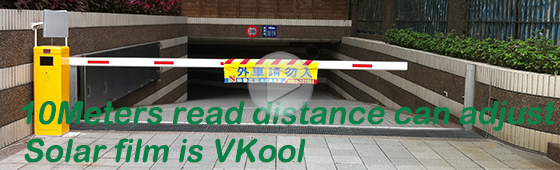

Solution 2(CP2):1-10Meters 2.45GHz Long Range Parking Control System.
Solution 3(CP3):0.7-1.2Meters EM card Mid Range Parking Access System.


JT offer total solution for long range parking access system – long range reader, access controller and software with CCTV picture capture integration. JT solution is optimized to achieve more convenient usage, faster pass through rate and higher security level at more affordable cost. You can start to enjoy the benefit of JT automation technology.

Advance than infrared:
1.The tags not need adjust the angle.
2.Our 2.45GHz reader housing is casting aluminium.the infared housing is steel or ABS.
3.Work with our LD-100 high speed vehicle detector.then can be faster pass.
4.Competitive prices.factory prices.

How Vehicle Access Control Works:

Long range reader reads the transponder inside of vehicle from far and barrier gate is triggered to open ahead of time. Barrier gate is already fully opened by the time vehicle arrived at entrance. Vehicles can continuously enter without the need to fully stopped for flashing card at reader. This allow higher traffic flow and reduces traffic jam especially during peak hours.

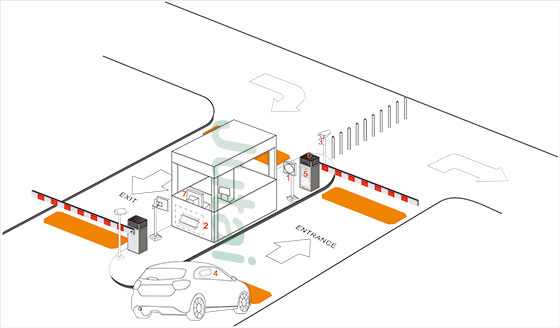

The System Parts:

Long Range Parking Reader JT PR-2S It is long range reader for parking control Read distance:1-15M adjust The card can't be copy.	Access Control System JTAC-20T guard house verify card number, expiry date and access permission. Upon approved identity, AC-20T will open barrier gate and trigger DVR to capture picture.
IP Video Camera JTIV-200 IP Video Camera,can connect to software direction,not need to add another DVR Video Server.Save money.and control easy.	2.45GHz RFID tags JT ID-2S Intelligent tags Can't be copy,easy to use,hands free system. CR2032 battery,1pcs work lift >1years Also can used for remote control.Light Control.
Loop detector JTLD-100 Enhanced loop detector will trigger barrier gate to close automatically after vehicle complete passed through,Self-tuning range:20-2000UH	Traffic barrier gate JTBG-630 1.2s,3s,6s be selected; Arm 3-6m; The clutch on pendulum axis, barrier boom upped quickly by hand underPower status, rest automatically when power off.
Access Software JT AC-26000 software display live picture captured and record event log of each entry and exit.
