ticket parking management system Description:
The barcode solution for managing occasional users and payments.
• System for managing occasional users and season ticket holders.
• The system can be customised according to the owner's actual requirements.
• It ensures a reduction in running costs and greater system profitability.
• It enables business relationships to be established with public or private bodies.
• Top modularity and efficiency of the service offered.
• Barcode tickets on pre-cut ISO STANDARD FAN FOLD thermographic paper.



The Whole system include 3 parts:

1.Entrance parts.
2.Exit Parts
3.Charge Centre

Entry unit
Designed to manage entry with barcode tickets, this has two buttons to request the ticket (double height) and a reader for transponder cards to manage season ticket holders. An intercom can be fitted. Made from sturdy galvanised steel with epoxy paint, secured to the ground using the anchoring base supplied.

Exit unit
Allows the use of barcode tickets that have been validated (at the automatic or manual pay station) to manage exiting the parking facility. Complete with reader for transponder card to manage season ticket holders. An intercom can be fitted. Made from sturdy galvanised steel with epoxy paint, secured to the ground using the anchoring base supplied.

Automatic payment station
Manages payment and validation of barcode tickets, complete with reader for various denominations of coin, reader for transponder cards to manage season ticket holders and thermographic paper printer for issuing receipts. Made from sturdy galvanised steel with epoxy paint, secured to the ground using the anchoring base supplied.

Parking management System with barcode ticket:


The System Parts:

Long Range Parking Reader JT PR-2S It is long range reader for parking control Read distance:1-15M adjust The card can't be copy.	Car parking management PM-900TEN is an Entry Terminal. It supports Mifare card as parking tickets It supports a barcode ticket as parking tickets.
IP Video Camera JTIV-200 IP Video Camera,can connect to software direction,not need to add another DVR Video Server.Save money.and control easy.	2.45GHz RFID tags JT ID-62 Intelligent tags Can't be copy,easy to use,hands free system. CR2032 battery,1pcs work lift >2years Also can used for remote control.Light Control.
Loop detector JTLD-100 Enhanced loop detector will trigger barrier gate to close automatically after vehicle complete passed through,Self-tuning range:20-2000UH	Traffic barrier gate JTBG-630 1.2s,3s,6s be selected; Arm 3-6m; The clutch on pendulum axis, barrier boom upped quickly by hand underPower status, rest automatically when power off.
Cashier Station PM-900TEN Cashier Station is a PC based POS computer in JUTAI parking system. It supports the barcode tickets and provides a manned payment service for a parking facility.	More Information: info@jutairfid.com

Barcode Ticket parking System datasheet download(If you can't open,pls contact our sales person,tks for follow Jutai):

1.JUTAI-barcode-ticket-system-installation	751K
2.JUTAI-barcode-ticket-system-introduction	799K
3.JUTAI-barcode-ticket-system	1.22M

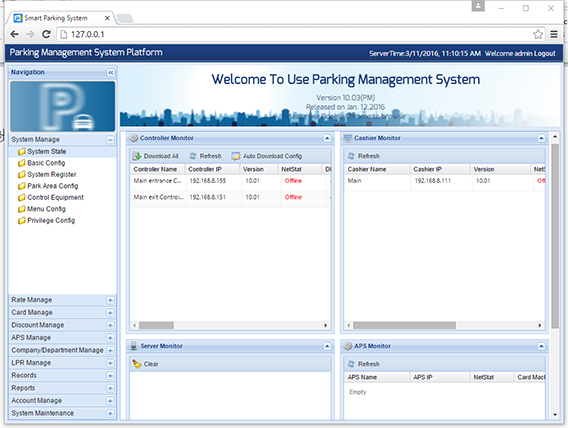

Parking automatic facilities with barcode ticket for sales software:
