Power supply:12/24(VAC/VDC)
* Max.Range up:20Meters(indoor or outdoor)
* Opera temperature:-10-+60℃
*Max.TX working current:25mA

*Max. RX working current:35mA
*Max. Relay contact:500mA
*IP rate:IP55
*Installation:
To open the IR-20M, lift the front panel of the photocell. Insert the cables in their housing and fix the base to the wall. If the photocell has to be mounted on a wall, drill the trhree 5 ø holes and fit suitable screw anchors. If the photocell has to be mounted on metal, drill the three 3 ø holes for fitting with the self_tapping screws. Make the connections. Power the photocells with a

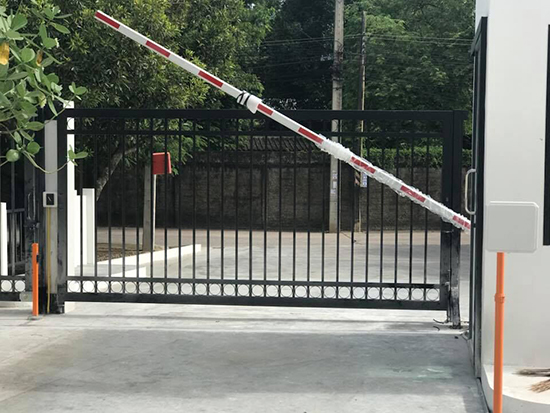

voltage between 12 and 24V DC/AC. If positioning, alignment and connection have been carried out properly, the red LED on the receiver will be off. Each time the ray is interrupted, the red LED switches on. Cover the photocell with the front panel. Insert to the stop and close it. Interrupt the ray several times checking the relay response. Fix the front panels with the provided screws. *Application:Parking control,Autogate control...etc

Technology Parameter

Power supply	12-24 VAC or 12-30 VDC
Max.Range up	30 Meters ( 100ft)
Opera temperature	-20℃ + 60℃
Max . TX working current	<50uA
Max . RX working current	30mA @ 12V DC
Max . Relay contact	Max 500 mA e 48 Vac/dc
IP rate	IP65
Meterial	PC
Ner Weight	160g

Installation
     To open the WIS-30M, lift the front panel of the photocell. Insert the cables in their housing and fix the base to the wall. If the photocell has to be mounted on a wall, drill the three 5 ø holes and fit suitable screw anchors. If the photocell has to be mounted on metal, drill the three 3 ø holes for fitting with the self_tapping screws. Make the connections. Power the photocells with a voltage can be 12-24 VAC or 12-30 VDC. If positioning, alignment and connection have been carried out properly, the red LED on the receiver will be off. Each time the ray is interrupted, the red LED switches on. Cover the photocell with the front panel. Insert to the stop and close it. Interrupt the ray several times checking the relay response. Fix the front panels with the provided screws.
